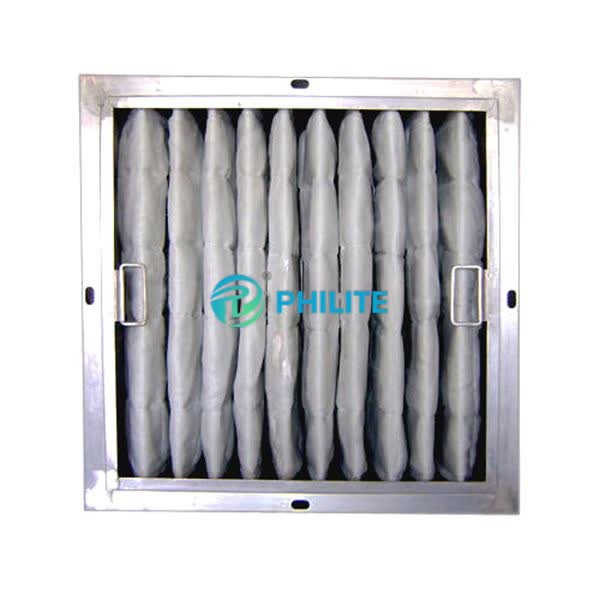

Deep Folds Box Filter

1.Low initial pressure drop
2.High dust holding capacity
3.Sturdy construction
4.High air flow rate
5.Economical

Categories Air Filters, HEPA Filters

Description

Type	deep folds box filter
Frame	galvanized steel
Filter media	multi-layer complex synthetic fiber
Separators	stiff corrugated cardboard
EN 779 Class	F6－F8
Average arrestance	99%（ASHRAE 52.1-1992）
MERV	MERV 11－15（ASHRAE 52.2-1999）
DIN 53438 Flammability	F1
UL 900 Standard	CLASS 2
Final pressure drop	(recommender) 450Pa
Max. air flow rate	125% of nominal air flow rate
Max. operating temperature	70℃
Max. relative humidity	80%
Applications	fine particle filtration and pre-filtration for absolute filters
