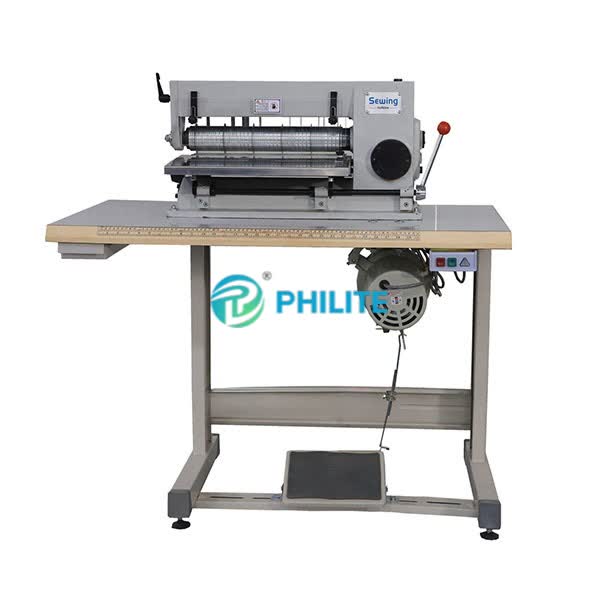

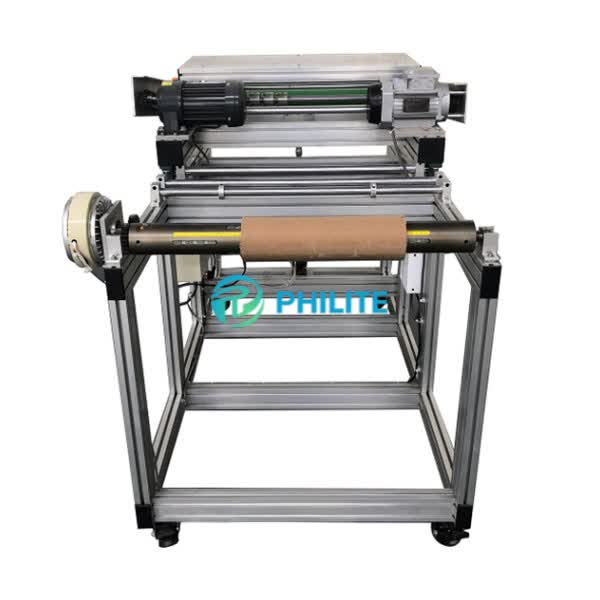

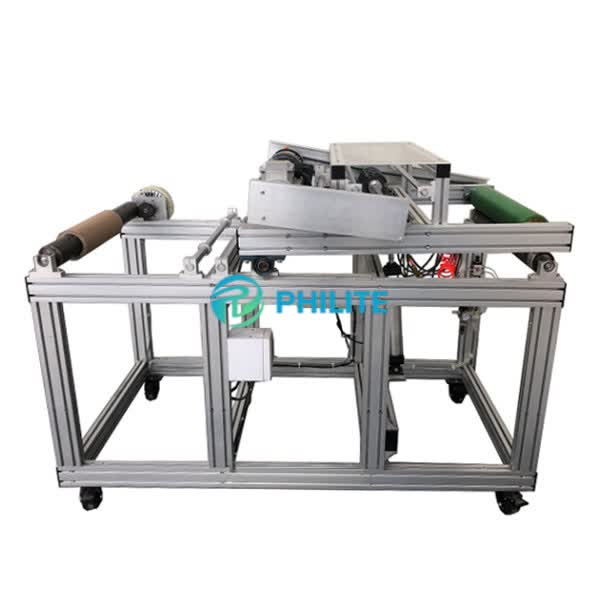

This product is a small slitting machine dedicated to snap band groove strips, with various widths adjustable, high slitting efficiency and low failure rate.
Description
The Advantage of Our Fabric Strip Slitting Machine
- This small fabric strip slitting machine substantially saves the underutilized fabric to automatically slitting the fabric from 20mm to 350mm width.
- The slitting speed is about 5m/min and 15 fabric strips can be cut at same time without manually fabric feeding.
- This machine has the properties of high efficiency and durability.
- The consistency of fabric strip width make sure the sewing quality of snap band groove.
Basic Parameters
1. Power: 1.2kw.
2. Rated voltage: AC380V, rated frequency: 50～60HZ.
3. Dimensions: 1500X1250X900mm.
4. Slitting speed: 0～10m/min.
5. Max. Slitting width: 520mm.
6. Seven pieces small fabric can be slit at the same time.
7. The machine is equipped with 8 tungsten steel blades.
