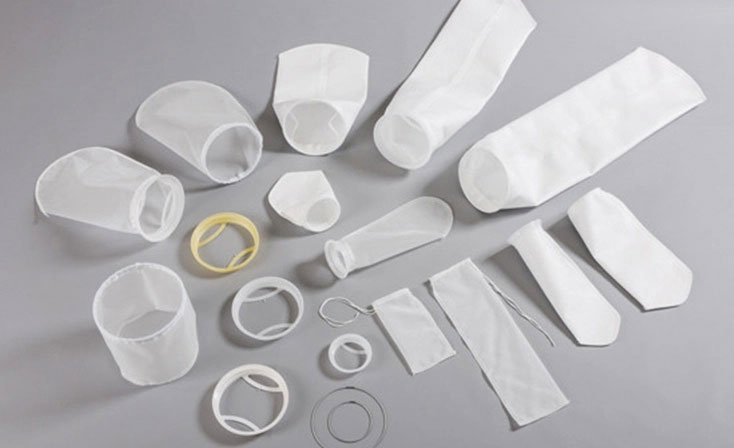

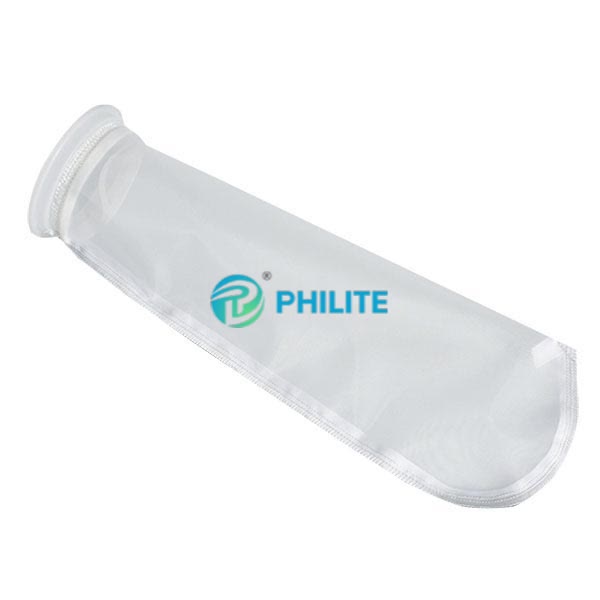

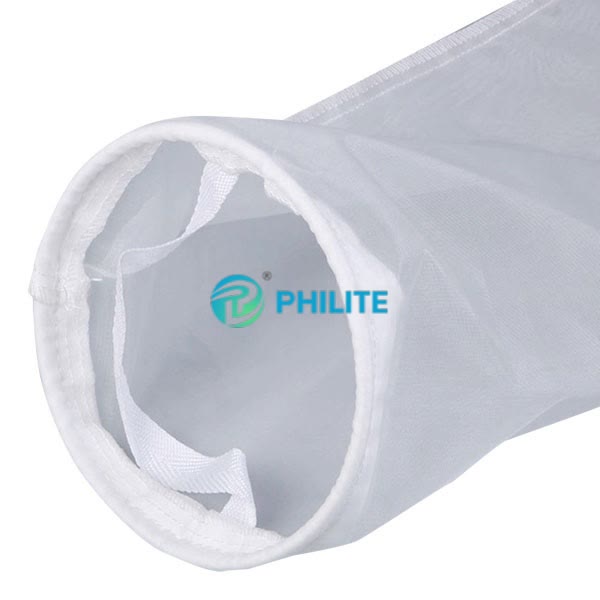

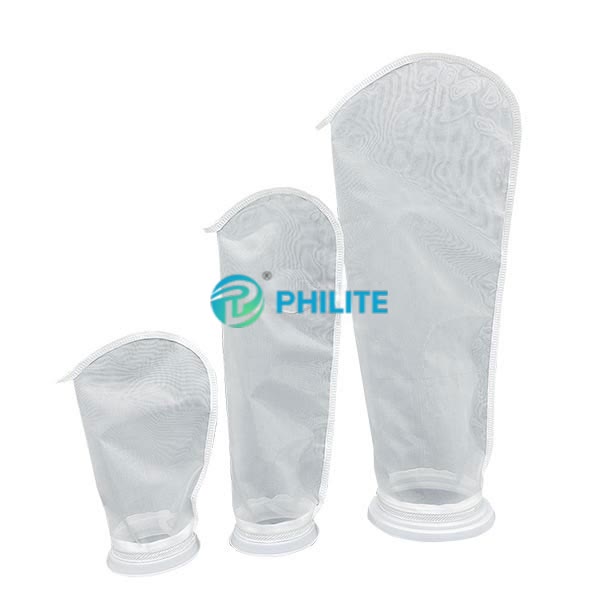

Nylon Filter Bags

Nylon filter bags are a versatile and reliable choice for a wide range of liquid filtration needs, offering strong performance and durability across many industrial applications.

Material: Monofilament nylon.
Mesh size: 5, 10, 25, 50, 100, 150, 200, 400, 500, 600, 800µm or Customized.
Generic specifications: 12″x12″, 11″x16″,10″x12″,26″x22″or customized.
Bag top types: Plastic ring top, Metal ring top, Drawstring top.
Maximum operating temperature: 90℃.

Category Liquid Filter Bags Tag Wet Filtration

Get a Quote

Description

Nylon mesh filter bags are a specific type of fabric filter bag made from nylon (polyamide) material. These bags are known for their durability, chemical resistance, and versatility. They are widely used in various industrial applications for liquid filtration, rather than air filtration, where their unique properties are particularly beneficial.

Features of Nylon Filter Bags

Mechanical Properties

Nylon (Polyamide): Known for its strong mechanical properties, abrasion resistance, and good chemical compatibility with many substances.

Filtration Efficiency

Micron Ratings: Nylon filter bags come in various micron ratings, typically ranging from 1 to 200 microns, allowing for precise filtration levels according to the application needs.
Durability:

Strength

Nylon is a tough material that can withstand high-pressure conditions and is less likely to tear or break compared to other filter materials.
Temperature Resistance: Nylon can generally handle temperatures up to around 120°C (248°F), making it suitable for a variety of industrial processes.

Chemical Resistance

Compatibility: Nylon filter bags are resistant to many chemicals, including oils, hydrocarbons, and organic solvents, though they may not be suitable for strong acids or alkalis.

Choose Philite®

Philite® nylon monofilament filter bags are made of woven fabric. Monofilament mesh filter bags have super strength and wear resistance, no fiber shedding, and have uniform pore size. With its excellent performance and wide applicability, it has become an important tool in the field of industrial filtration.

High-quality material: high-quality nylon monofilament, high toughness, multiple mesh options to choose from.
Fine processing: It adopts three-needle and five-thread industrial sewing technology, and uses high-strength sewing thread to thicken the edge, which is strong and reliable.

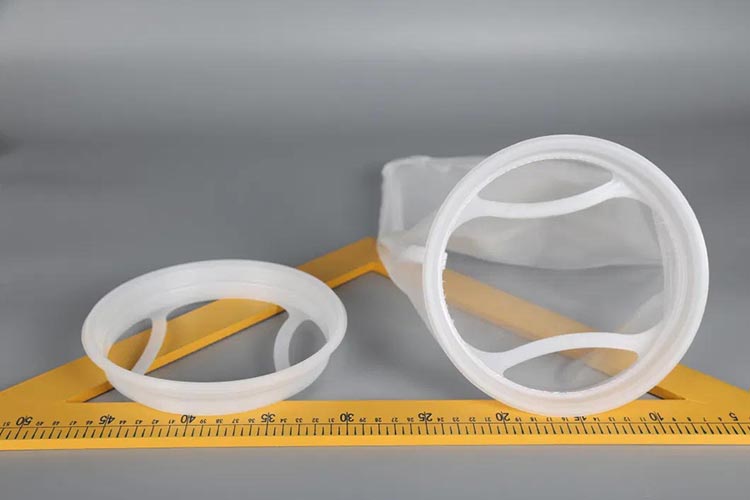

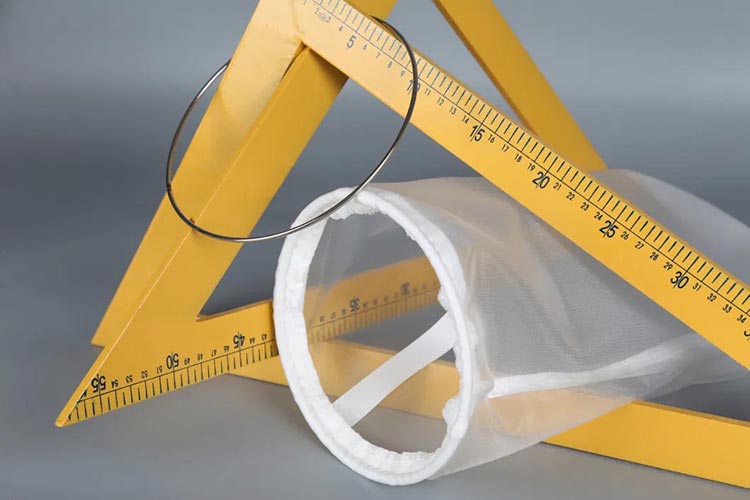

Bag top options: There are a variety of rings to choose from, including stainless steel rings and plastic rings.

Our Product Quality

Food-grade nylon filter bag has fine mesh, is not easy to block, and can filter liquids finely.
Reusable and easy to clean, reducing usage costs.

Nylon Filter Bag Model

Item	material	mesh count		yarn diameter	Mesh opening	open area	thickness	weight
NO		mesh/cm	mesh/inch	microns	microns	%	microns	g/㎡
JPJ6	PA6	6	16	400	1200	56	760	205
JPJ7	PA6	7	19	320	1000	57	610	157
JPJ9	PA6	9	23	300	800	52	525	168
JPJ9.5	PA6	9.5	24	250	800	58	480	145
JPJ10	PA6	10	25	280	750	53	530	156
JPJ11	PA6	11	30	250	600	49	470	150
JPJ16	PA6	16	42	200	400	44	370	136
JPJ19	PA6	19	48	180	350	43	335	125
JPJ20	PA6	20	51	200	300	36	370	163
JPJ22	PA6	22	56	150	300	36	280	102
JPJ24	PA6	24	62	160	250	37	295	123
JPJ31	PA6	31	80	120	200	39	215	87
JPJ40	PA6	40	100	100	150	36	190	77
JPP48	PA6	48	123	80	125	37	145	59
JPP54	PA6	54	140	60	125	45	88	38
JPP62	PA6	62	160	60	100	39	108	44
JPP80	PA6	80	204	50	75	36	90	29
JPP107	PA6	107	270	43	50	29	68	45
JPP128	PA6	128	320	43	35	20	78	46
JPP157	PA6	157	400	35	28	15	78	50
JPP189	PA6	189	480	43	15	7	80	60

Item	material	mesh count		yarn diameter	Mesh opening	open area	thickness	weight
NO		mesh/cm	mesh/inch	microns	microns	%	microns	g/㎡
JPJ7	PA66	7	19	330	1000	56	630	165
JPJ9	PA66	9	23	270	800	56	510	138
JPJ12	PA66	12	29	240	600	51	455	140
JPJ17	PA66	17	43	180	400	47	335	116
JPJ23	PA66	23	59	130	300	48	235	83
JPJ26	PA66	26	66	130	250	43	240	94
JPP28	PA66	28	72	100	250	51	185	70
JPJ34	PA66	34	86	100	200	44	180	74
JPP36	PA66	36	93	100	170	39	182	69
JPP38	PA66	38	100	60	200	59	108	29
JPP39	PA66	39	100	55	200	61	98	25
JPP43	PA66	43	110	80	150	42	140	62
JPP48	PA66	48	123	80	125	37	145	59
JPP58	PA66	58	149	70	100	34	120	54
JPP66	PA66	66	169	70	80	28	125	65
JPP93	PA66	93	236	47	60	31	75	39
JPP110	PA66	110	280	38	50	29	71	36
JPP120	PA66	120	305	38	45	29	74	37
JPP157	PA66	157	400	35	28	20	66	40
JPP189	PA66	189	480	43	15	7	80	60

No.	Material	Mesh count		Mesh diameter		Mesh opening	Open area	Thickness	weight
				warp	weft
		cm	inch	um	um	um	%	um	g/㎡
JMG12	PA6	4.5	11	400	400	1822	67	760	153
JMG14	PA6	5	12	400	400	1600	64	770	170
JMG15	PA6	5.5	14	400	400	1418	61	780	187
JMG16		6	15	350	350	1317	62	665	156
JMG18	PA6	6.5	17	350	350	1180	59	670	170
JMG19	PA6	7	18	350	350	1079	57	675	382
JMG20	PA6	7.5	19	300	300	1023	60	560	144
JMG22	PA6	8	20	300	300	950	58	560	153
JMG24	PA6	8.5	22	300	300	876	56	565	163
JMG26	PA6	9	23	300	300	811	54	570	172
JMG27	PA6	10	25	250	250	750	56	475	133
JMG28	PA6	10.5	27	250	250	702	54	475	140
JMG30	PA6	11	28	250	250	659	53	480	146
JMG31	PA6	11.5	29	250	250	619	51	485	153
JMG34	PA6	12	30	250	250	583	49	490	159
JMG36	PA6	12.5	32	250	250	550	47	490	166
JMG38	PA6	14	36	200	200	514	52	360	119
JMG40	PA6	14.5	37	200	200	489	50	365	123
JMG42	PA6	15	38	200	200	466	49	365	128
JMG44	PA6	16	41	200	200	425	46	370	136
JMG46	PA6	17	43	200	200	388	44	375	145
JMG50	PA6	18	45	200	200	355	41	380	153
JMG52	PA6	20	50	150	150	338	48	270	98
JMG54	PA6	22	55	150	150	315	46	275	103
JMG60	PA6	23	58	150	150	285	43	280	110
JMG62	PA6	23.5	60	150	150	275	42	285	112
JMG64	PA6	26	66	150	150	267	41	285	115
JMG66	PA6	28	71	100	100	251	51	163	61
JMG68	PA6	29	74	100	100	245	50	165	63
JMG70	PA6	30	76	100	100	239	50	166	64
JMG72	PA6	30.5	77	100	100	227	47	168	66
JMG74	PA6	32	81	100	100	213	46	170	69
DMP6	PA6	34	86	80	80	178	41	150	55
DMP7	PA6	42	106	100	100	150	36	180	85
DMP9	PA6	44	111	80	80	152	43	140	70
DMP10	PA6	47	120	80	80	130	38	138	75
DMP11	PA6	54	137	60	60	120	44	104	40
DMP12	PA6	58	147	60	60	110	42	104	42

Common Uses of Nylon Filter Bags

Water Treatment

Used in industrial and municipal water treatment facilities to filter out particulate matter from water.

Food and drinks

Used to filter products such as beer, wine, juices and syrups to ensure they are clean and pure.

Pharmaceutical

Used to keep liquid pharmaceuticals and intermediates clean and pure.

Vehicle

Used to filter oil, coolant and other fluids in automotive manufacturing and maintenance.

Chemical processing

Used in all stages of chemical production to filter impurities and ensure the quality of the final product.

Precautions

Temperature limit: Nylon has limited high temperature resistance and is generally not suitable for long-term use in environments exceeding 100°C.
Acidic environment: Nylon has poor resistance to strong acids and may degrade in strong acidic environments.
Regular inspection and maintenance: In order to ensure the filtration effect and the life of the filter bag, the integrity of the filter bag needs to be checked regularly and necessary cleaning and maintenance must be performed.
