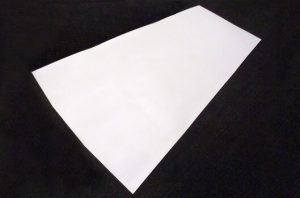

Pan Filter is applied to alumina production.
Capacity: in stock
Material: PP
Weaving Methods: Plain, Twill, Satin
Cloth Codes Most Widely Used: ES-P190.
Description
Pan filters with their horizontally arranged filter surface are particularly suited for filter cake washing. Therefore, they are preferably used for the filtration and washing of coarse-grained and rapidly sedimenting suspensions.
Pan filters are available with different pan diameters and filter areas from 16 m² to 68 m².
Application:
Alumina Production.
Segment cover:
Technical parameter:
| Product Code | ES-P190 | |
| Material | PP | |
| Yarn Type | Mono/Mono | |
| Weight | 300 | |
| Thickness | 0.6 | |
| Air Permeability | 1700±200 | |
| Tensile Strength
N/5 X 20cm |
Warp | 3800 |
| Weft | 2000 | |
| Finish Treatment | Heat setting, Calendaring | |
