Nylon filter cloth is made of polyamide fiber. It has many advantages, such as high temperature resistance, chemical corrosion resistance, high tensile strength, etc. Nylon filter fabrics are commonly used in a variety of industrial applications, including liquid filtration, gas filtration, powder filtration, etc. Its fine fiber structure captures tiny particles and impurities for effective filtration.
- Material:100% nylon.
- Mesh Opening: 32-1931um.
- Mesh Count: 13~380 Mesh/inch.
- Width: 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or customized.
- Length: 30-100m/roll or customized.
- FAW: 200-850gsm and other customized weight.
- Weave: plain, twill, satin.
- Certificate: ISO9001, ROHS, SGS, LFGB.
- Capacity:2000 m² a day.
Description
Our Product Features:
- Non-toxic, odorless and tasteless.
- High strength, high elongation, sufficient elasticity and wear resistance.
- Resistant to weak acid, oil and alkali.
- Heat resistance, insulation and low lubrication coefficient.
- Long service life.
Types of Nylon Filter Cloth
1. Monofilament Nylon Filter Cloth
(1) PA filament yarn filter cloth.
(2) PA staple yarn filter cloth.
2. Multifilament Nylon Filter Cloth
(1) PA filament yarn filter cloth.
(2) PA staple yarn filter cloth.
Monofilament PA Filter Cloth compared with Multifilament PA Filter Cloth
Performance of monofilament PA Filter Cloth:
- Great permeability of air and water.
- Less jam possibility.
- Filter cake can be easily released and recycled.
Performance of multifilament PA filter cloth:
- Great strength,especially its anti-abrasion is top-ranked in all general fibers.
- Resist strong alkali and weak acid.
- The strength expense can be ignored after dealt with NaoH(10%),as Polyamide is used 16h in the state of 90℃.
- It’s continual applied temperature within 120℃ and the instant applied temperature can be up to 150℃.
- PA 66 can not be applied in the field of Pharmacy and Food industry.
Specifications of Monofilament Nylon Filter Cloth
| MODEL .NO | WEIGHT (g/m2) | SPLITTING STRENGTH (N/5╳20cm) | SPLITTING AND ELONGATION(%) | AIR PERMEABILITY (mm/s) | THICKNESS (mm) | ||
| WARP | WEFT | WARP | WEFT | ||||
| PA5815 | 540 | 5340 | 2258 | 28.7 | 24.6 | 818 | 0.85 |
| PA5133 | 590 | 7304 | 2550 | 37.8 | 26.5 | 619.4 | 1.00 |
| PA2213 | 280 | 3111 | 1825 | 25.8 | 24.2 | 2268.36 | 0.52 |
| PA2812 Dright | 360 | 3585 | 2165 | 33.5 | 25.8 | 2239.12 | 0.65 |
| PA2812 | 350 | 3780 | 2456 | ||||
Specifications of Mutifilament Nylon Filter Cloth
01
| MODEL NO | WEAVING | MATERIAL | DENSITY(radlx/10cm) | WEIGHT(g/m2) | ||
| WARP | WEFT | WARP | WEFT | |||
| 407 | Plain | Long thread | Long thread | 240.8 | 187.2 | 195.4 |
| 663 | Plain | Long thread | Long thread | 192 | 156 | 263.8 |
| 601 | Plain | Long thread | Long thread | 132 | 160.8 | 222.6 |
| 301 | Plain | Long thread | Long thread | 275 | 250 | 106.8 |
02
| MODEL NO | SPLITTING STRENGTH (N/5╳20cm) | SPLITTING AND ENLONGATION(%) | AIR PERMEABILITY (mm/s) | THICKNESS(mm) | ||
| WARP | WEFT | WARP | WEFT | |||
| 407 | 1913 | 1539 | 59.4 | 46.4 | 29.7 | 0.42 |
| 663 | 2307 | 958 | 71.6 | 20.6 | 28.8 | 0.58 |
| 601 | 2500 | 1776 | 60 | 29.8 | 223.6 | 0.49 |
| 301 | 2016 | 1981 | 67 | 62.4 | 114.4 | 0.22 |
Applications

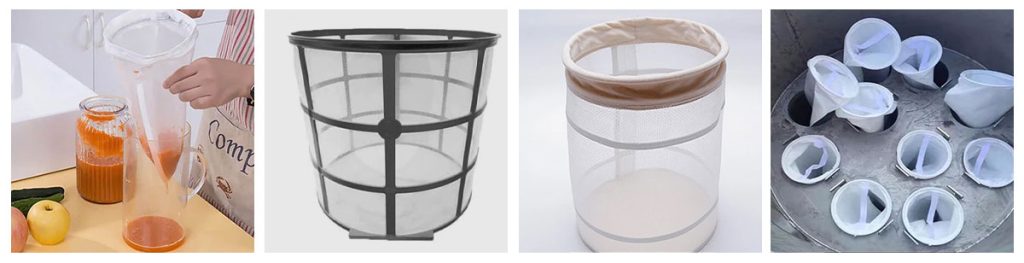

Nylon filter fabric is widely used in alcohol filtration, medicine residue filtration, milk filtration, edible oil filtration, water filtration, industrial particle filtration, dust filtration, etc.
Choose Philite®
We’re professional manufacturer & supplier of nylon filter fabrics. As a leading exporter of filter media, Philite® Everspring’s filter cloth was export to lots of countries covering Asia, Europe and America and enjoy a good reputation among our customers. Despite our conventional items, we also welcome other customized order.
