Industrial Filter Bags
Bag Filter for Clinker Cooler
Working Temperature: 150℃~260℃
Main Material: Nomex(Aramid), P84, FMS needle felt, Fiberglass woven fabric, etc.
Finish Treatment: Calendering, Heat setting, Singeing, PTFE impregnation, PTFE membrane
Diameter&Length: Customized
Capacity: 2000 pcs per day
Customization Accepted.
Product Description
Main working conditions and dust collection requirement of clinker cooler:
| Dust Collection Type | Outer-filtering |
| Treatment Air Capacity | 2500T/D≈330000m3/h, 5000T/D≈670000m3/h |
| Filtration Velocity | ≤1.0m/min |
| Entrance Dust Density | ≤100g/Nm3 |
| Emission Concentration Requirement | ≤30g/Nm3 |
| Inlet & Outlet Pressure Differential | ≤1500Pa |
| Working Temperature | 180℃, ≤260℃ |
| Regular Filter Bag Size | Dia. 160X6000-8000mm |
| Regular Service Life Requirement | 2-3 years |
Commonly used filter bag fabric chosen of clinker cooler:

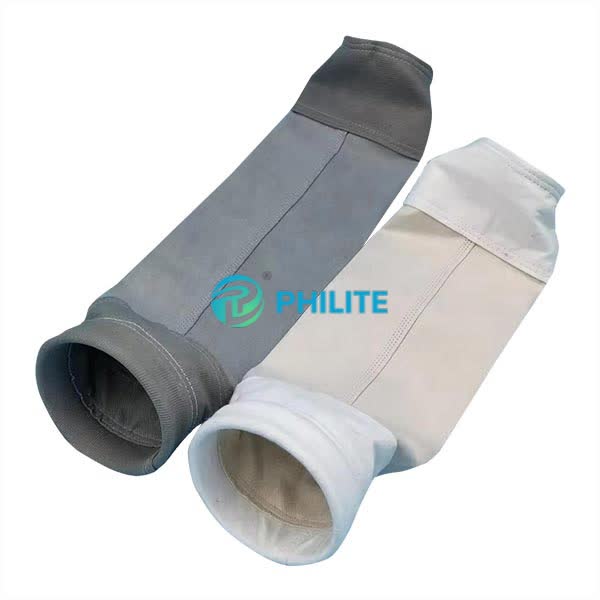

- Fiberglass Woven Fabric With PTFE Membrane
- Nomex (Aramid) Needle Felt

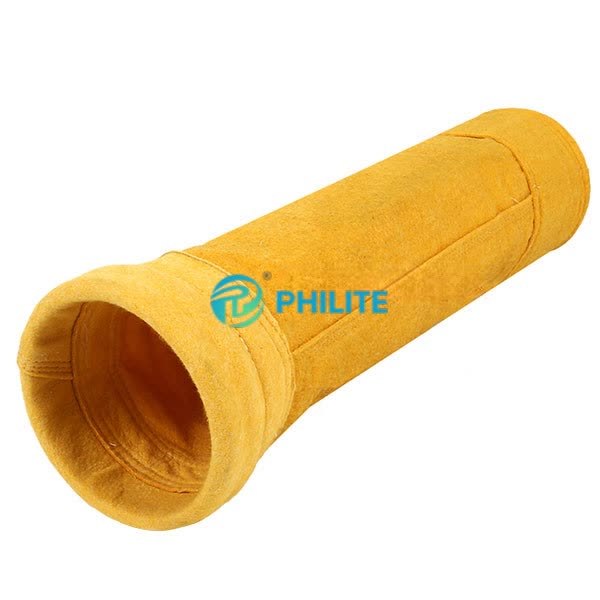

- P84 Needle Felt

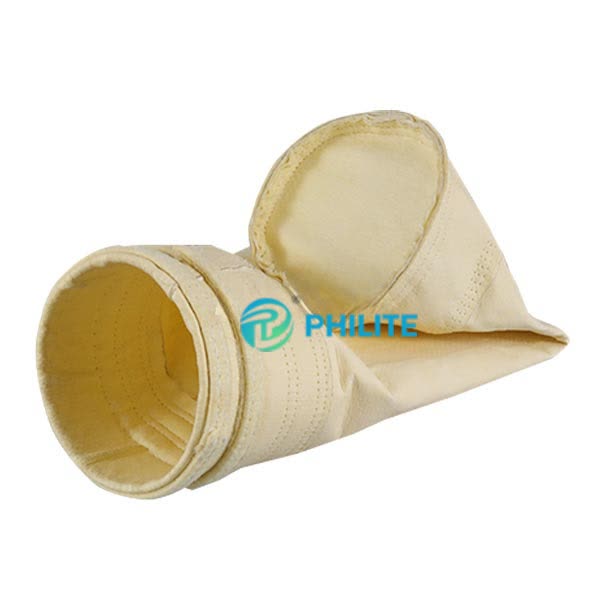

- FMS Needle Felt
