Filter Bag Accessories

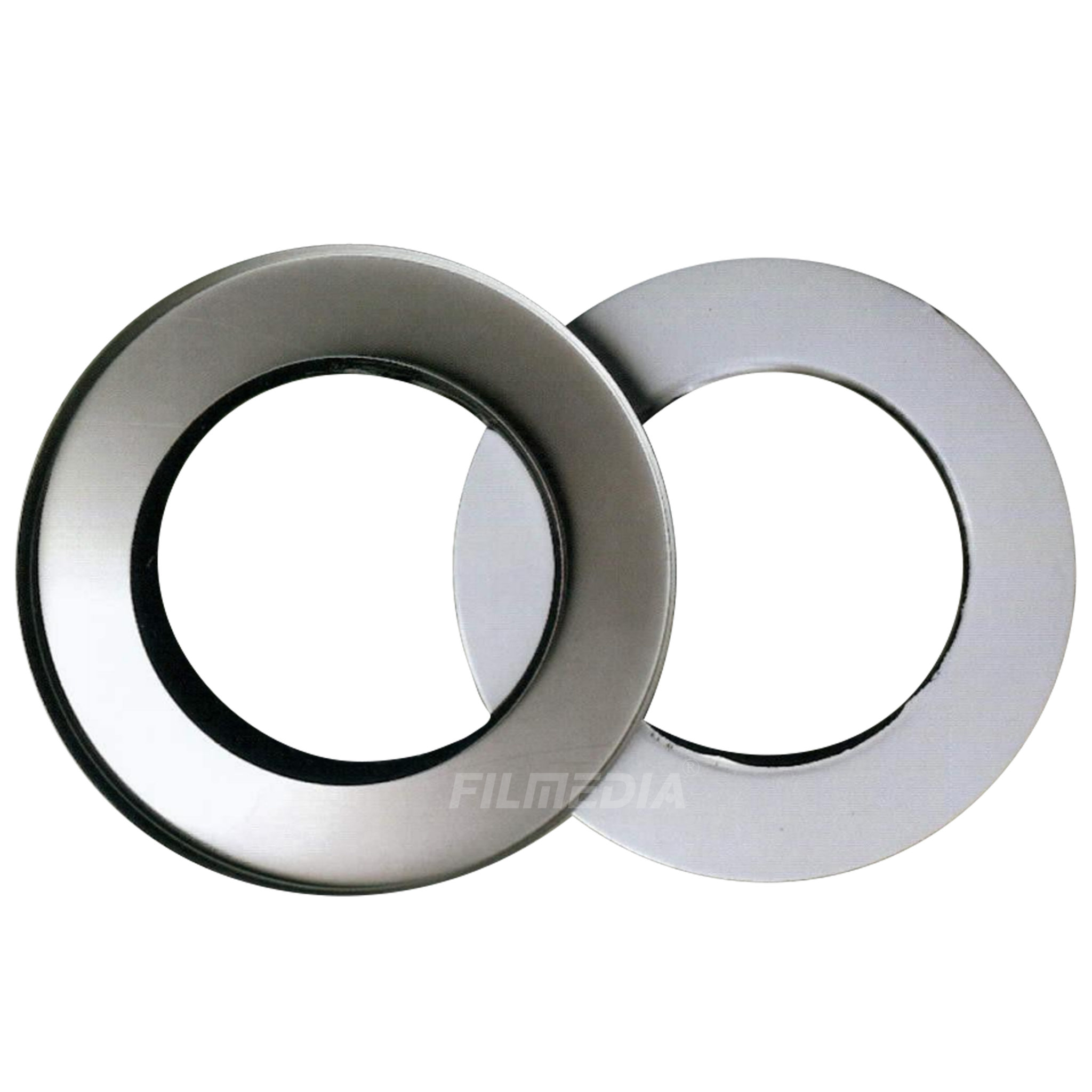

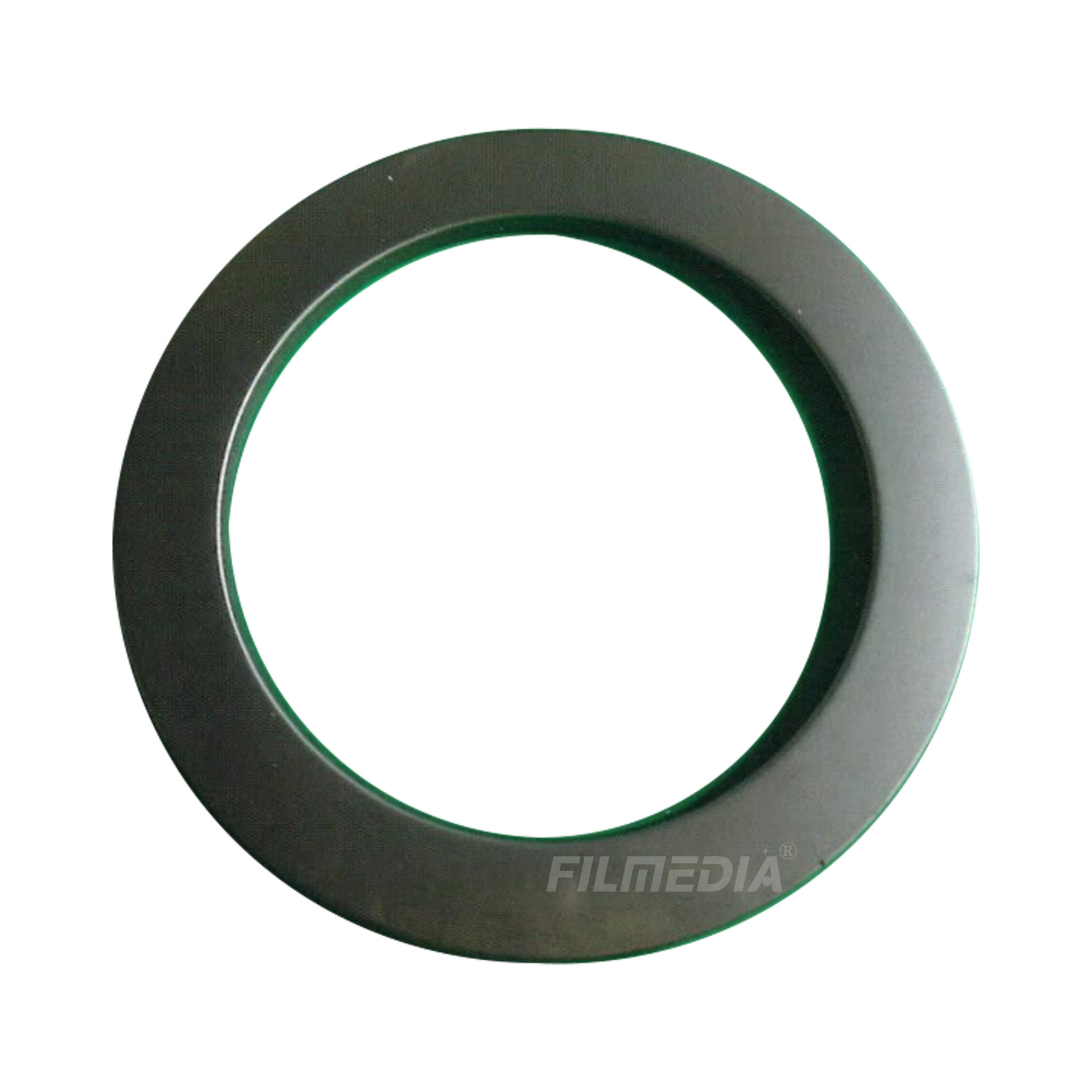

Filter top and bottom for filter cartridge
Using electro-galvanized anti-fingerprint, electrolytic plate, galvanized plate, cold plate and other plates, the end cover of the filter element mainly functions to seal the two ends of the filter element and support the filter material.
Product Description
Upper cover specifications:
| Serial number | Catalog: Outer Diameter*Inner Diameter Unit: mm | |||||
| 1 | 60*35 | 125*70 | 150*46 | 170*100 | 196*80 | 215*85 |
| 2 | 64*30 | 125*75 | 150*50 | 170*110 | 196*85 | 215*90 |
| 3 | 70.5*0.8 | 125*85 | 150*60 | 170*115 | 196*90 | 215*100 |
| 4 | 71.5*24 | 125*90 | 150*65 | 170*142*77 | 196*100 | 215*130 |
| 5 | 76*30 | 128*90 | 150*70 | 175*70 | 196*105 | 215*145 |
| 6 | 76*43 | 130*46 | 150*75 | 175*75 | 196*115 | 215*155 |
