Needle Punched Felt

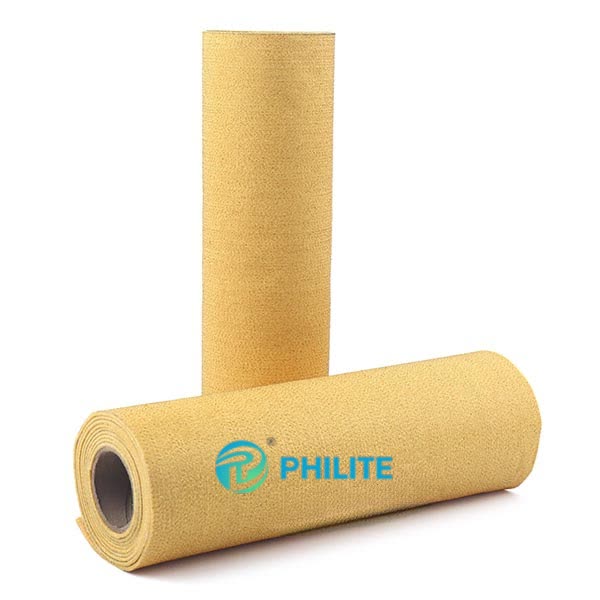

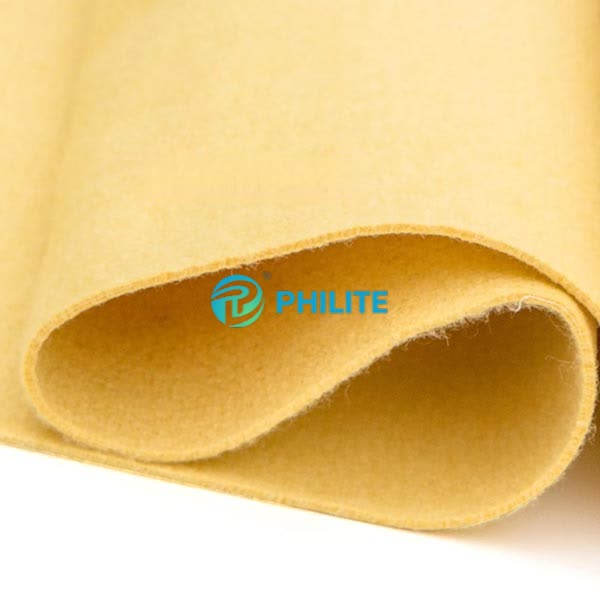

P84 Needle Felt Filter Cloth
P84 needle felt filter cloth is one of the most common materials used to make filter bags, made from polyimide fibers. And has high temperature resistance, good corrosion resistance and acid resistance. P84 needle punched felt provides a unique and cost-effective solution for many demanding industrial baghouse applications.
Learn About P84 Filter Bags
- Width: ≤2.2m.
- Length: ≤100m.
- High-efficiency filtration: Reach to 99.6%.
- Good Temperature-Resistance. Max. Temp.: 280°C /536°F.
- Long Service Life: >6000 hours.
- Our Capacity: 15000 square meter per day (standard Aramid Nomex product).
Learn About P84 Filter Bags
Product Description
P84 needle felt is remarkable for its fiber fineness, and the irregular fiber cross section increases the fiber surface area and provides many tiny pores, making the surface filtration effect better than the depth filtration. The dust only stays on the surface of the filter felt and cannot penetrate into the filter felt, so the filter cake ejection efficiency is significantly improved.
Advantages of P84 Needle Felt Filter Cloth
- High Temperature Stability: P84 has excellent high temperature stability and is able to maintain its physical and chemical properties under high temperature conditions. This makes P84 filter felt ideally suited for high-temperature gas filtration applications such as cement flue gas cleaning, the metallurgical industry and coal-fired power plants.
- Excellent Chemical Resistance: P84 has good resistance to chemical attack and can therefore be used in a variety of chemical conditions, including acidic and alkaline environments.
- Good Filtration Efficiency: P84 filter felts are generally effective at capturing tiny particles and dust, providing excellent filtration performance. This helps improve the capture and separation of particulate matter in the air or gas.
- Long Life and Wear Resistance: P84 generally have excellent wear resistance, which allows them to maintain a long service life under conditions of high flow rates and high particle loads.
- Low Shrinkage: The low shrinkage of P84 means it maintains its dimensional and shape stability even under high temperature conditions, ensuring continued filtration performance.
- Low Maintenance Cost: Due to the long life and high performance of P84 filter felt, its maintenance cost is relatively low as less replacement and repair work needs to be performed.
- Environmentally Friendly: P84 is a synthetic fiber that generally does not contain environmentally harmful substances, so it can be used in environmentally friendly applications.
Specifications
| Compositions | P84/P84 scrim | P84 / glass scrim | |||||
| Weight (g/m2) | 450 | 500 | 550 | 800 | 850 | 900 | |
| Thickness (mm) | 2.0 | 2.2 | 2.4 | 2.5 | 2.8 | 3.0 | |
| Air permeability (m2m2/min) | 19 | 15 | 12 | 16 | 13 | 10 | |
| Tensile strength (N/5×20cm) | Warp | 650 | 700 | 800 | 1800 | 1800 | 1800 |
| Weft | 1150 | 1200 | 1300 | 1800 | 1800 | 1800 | |
| Tensile Elongation (%) | Warp | <35 | <35 | <35 | <10 | <10 | <10 |
| Weft | <55 | <55 | <55 | <10 | <10 | <10 | |
| Working Temperature(°C) | Continues | ≤260 | ≤260 | ||||
| Instant | 300 | 300 | |||||
| Anti-acid | Excellent | Excellent | |||||
| Anti-alkali | Medial | Medial | |||||
| Anti-abrasion | Excellent | Excellent | |||||
| The stability of water solution | Medial | Medial | |||||
| Finishing treatment | Singeing,High temperature hot pressing | Singeing,High temperature hot pressing | |||||
Application of P84 Needle Felt
Filter bags made of P84 needle felt are widely used in many industries:
- Cement Industry: Used in kiln exhaust filtration systems.
- Power Generation: Employed in coal-fired power plants for flue gas filtration.
- Waste Incineration: Helps in the filtration of gases from waste combustion processes.
- Chemical Processing: Utilized in environments with corrosive gases.
