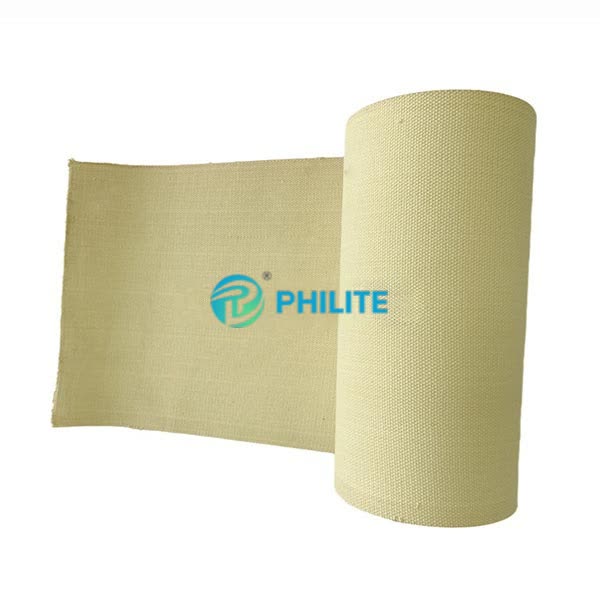

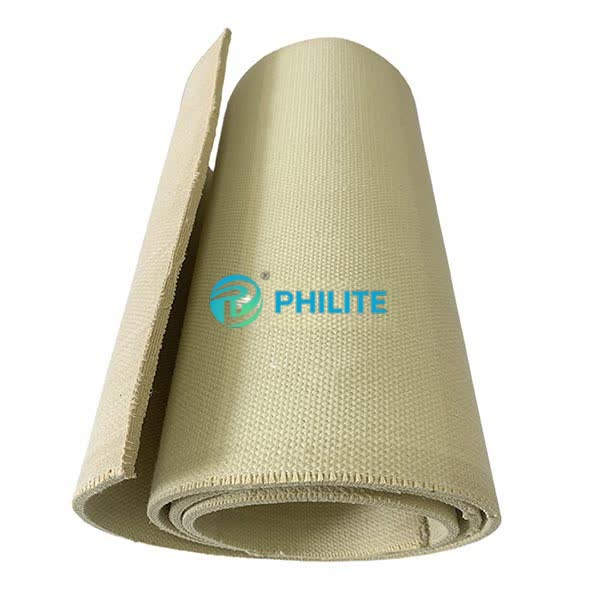

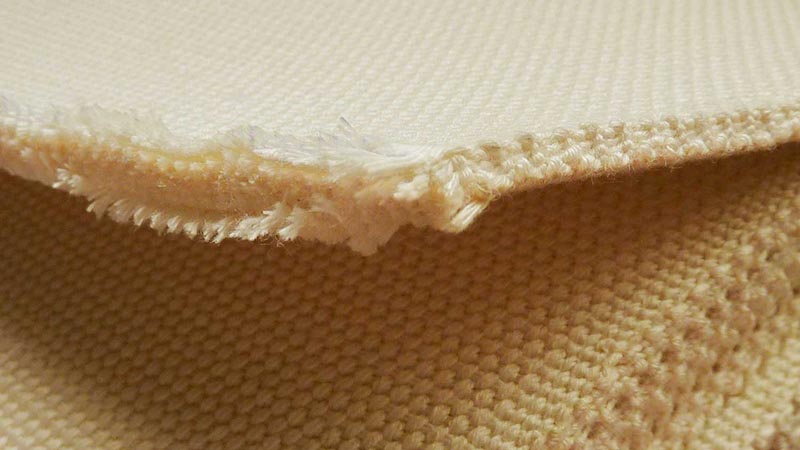

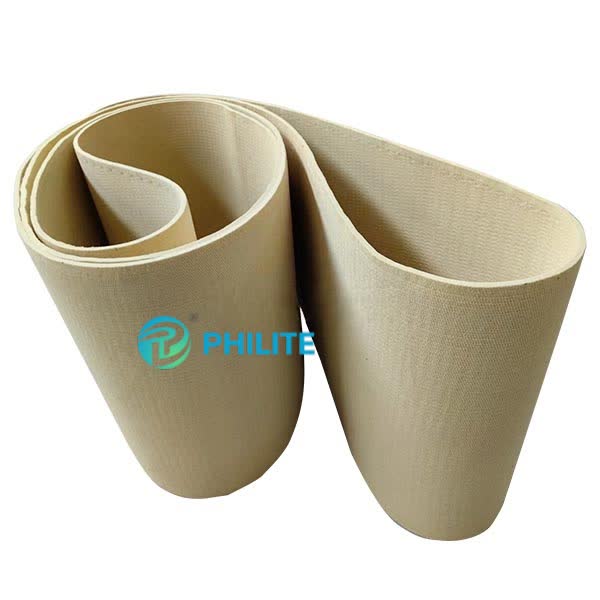

Kevlar air slide fabric is known for its high strength, durability, and heat and chemical resistance. Kevlar is a very popular filter media material with many good properties. However, it is not so popular in air slide cloth because its price is much higher than polyester air slide cloth. But if you need more powerful performance, it is a good choice.
- The max. length per roll: 50 M.
- Max Width: 2.6 M.
- Thickness: 4~10 MM.
- Heat-resistant: 260 ℃ ~ 280 ℃.
- Our capacity: 500 ㎡/ month.
Description

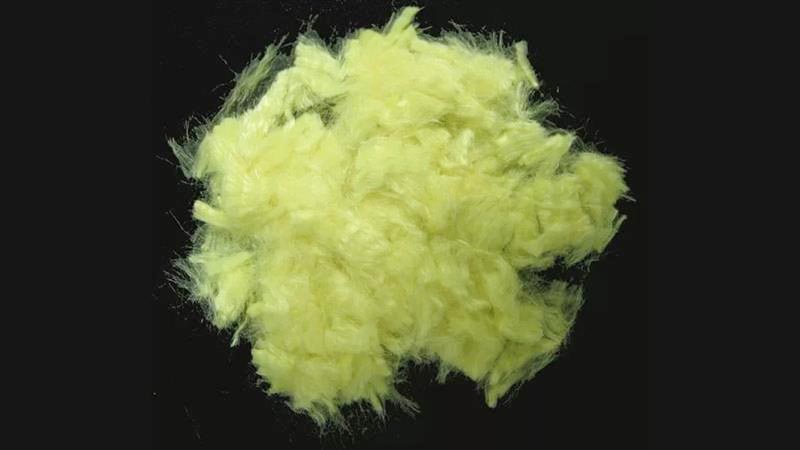

What is Kevlar?
If you’re a tech enthusiast, chances are you’re not familiar with the name Kevlar(Aramid/Nomex). As the most representative “super synthetic fiber” in modern times, the birth of Kevlar can be said to be a major breakthrough in the chemical fiber industry. Kevlar fabric has low density, high strength, good toughness, high temperature resistance, and is easy to process and form, but it is only one-fifth the density of steel.
Specification of Kevlar Air Slide Fabric
| Thickness (mm) | 5 | 6 |
| Gram Weight (gsm) | 3600 | 4200 |
| Air permeability (L/m².s) | 50 | 35 |
| Tensile strengthkg/cm²) | > 550 | > 600 |
| Max. Operating Temp. | 260°C | 260°C |
| Ultimate Temp. (Instant) | 280 °C | 280°C |
| Number of plies | 5 | 5 |
Ps: Tolerance of thickness: +/- 0.3mm , gram weight: +/- 5%, air permeability: +/- 10%.
Our Product Features
- Clear, flat, dimensionally stable and non-deformable.
- The air flow is uniform and stable.
- High temperature resistance and corrosion resistance.
- Low energy consumption, long service life, minimal maintenance.
- Imported raw materials, which have higher temperature resistance, higher strength and better abrasion resistance.
Applications of Kevlar Air Slide Fabric
Our product mainly used in air activated conveyors or bin/silo aerators for the conveyance of dry bulk powders.
- Cement industry: cement bulk cement trucks,boats;
- Mining: alumina,lime,fly ash,phosphate;
- Chemical industry: soda;
- Power: fly ash, desulfurization;
- Food industry: flour.
Philite® – Fluidizing Cloth Expert
- Our Kevlar air slide cloth meets EU standards and is exported to Europe and North America in large quantities.
- We have state-of-the-art equipment and can produce air slide cloth products like all other respected competitors.
- Please contact us for free samples, the prices offered by Philite® will surprise you.
