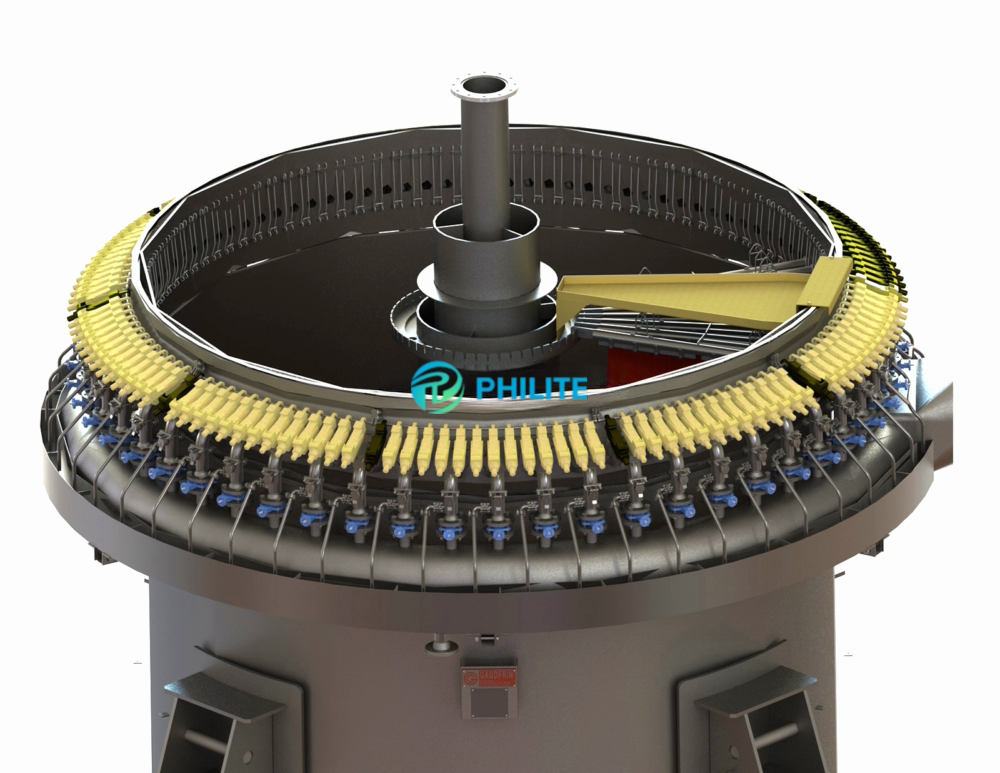

Leaf filter is applied to alumina production. Philite has a special polypropylene yarn to withstand strong alkaline process conditions at operating temperatures up to 110 degrees Celsius.
Capacity: 1200pcs/day
Material: PP
Weaving Methods: Plain, Twill, Satin
Cloth Codes Most Widely Used: ES-YLJ-S, ES-YLJ-T
Description
Leaf filters generally work under high temperature and pressure, so the filter cloth requires anti-high pressure, anti-high temperature, and high alkali resistance ability. We use polypropylene monofilament yarns. It has excellent filtration effects and long service life. We have accumulated abundant experience in the Alumina Industry.
Application:
Alumina Production
Technical Parameters for Several Common Use Cloth
| Product Code | Material | Yarn Type | Weight (g/m²) | Thickness (mm) | Air Permeability
(L/m²/S @200pa) |
| ES-YLJ-S | PP | Mono/Mono | 310 | 0.56 | 100 |
| ES-YLJ-T40 | PP | Mono/Mono | 330 | 0.52 | 40 |
