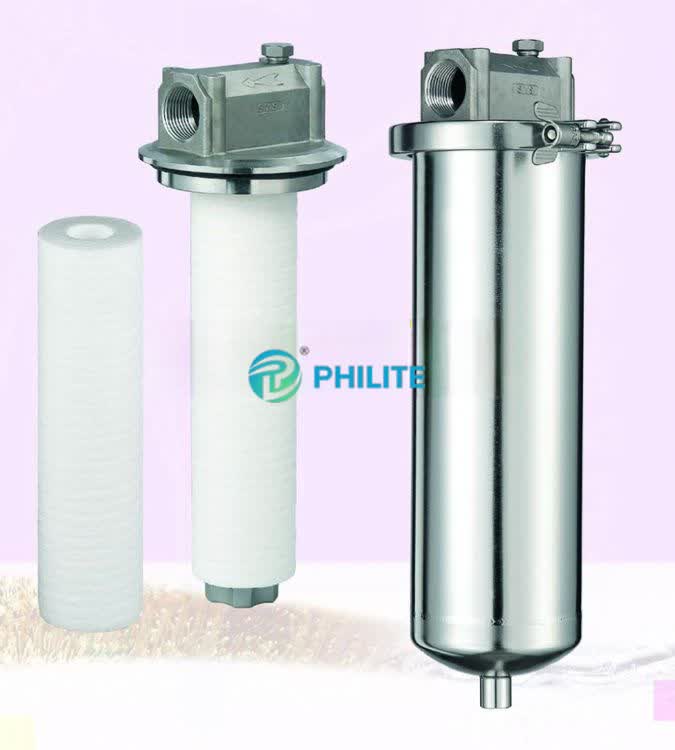

Single Cartridge Housing

Product Features:

• Quick release Vee Clamp Closure for easy opening
• Lightweight, high specification investment cast head
• Easy to use tie rod assembly design ensures cartridge centralisation (for a reliable knife edge seal) that enables the use of either 9.75” or 10” cartridge length configurations (or multiples) in the same housing
• Dual purpose head accepts SOE code 3 and DOE cartridges
• SOE code 7 and code B adaptors available
• Available in 316L stainless steel or Alloy 22 for maximum compatibility
• Wide range of connection size and types, cartridge lengths and materials of construction
• PED Compliant to Sound Engineering Practice
• Full traceability on all parts, material certification packs available
• Rated at full vacuum and 10 bar g in liquid and gases
• Can be supplied with a differential pressure gauge
• WRAS approved product

Features and Benefits

1.Investment Cast head (avoids the porosity & inclusion problems associated with lower quality sand castings)
2.Integral vent and drain sockets to aid efficient filter changeout complete with PTFE washer
3.Unique interchangeable configuration enables choice of SOE or DOE cartridge styles in the same housing
4.Every housing is etched with a serial number for full traceability
5.Full housing customisation service available
6.Available in both 316L Stainless Steel and Alloy 22

Specification

Maximum Operating Conditions Pressure Range: Liquid: FV / 10 bar g Gas: FV / 10 bar g Temperature Range: -10ºC / 150ºC
Materials of Construction Body and Closure: 316L St.Steel Alloy 22 Clamp: 304 St.Steel Seal: Ethylene Propylene
Finish Vessel: Externally polished sump, bead blast head Connections Inlet/Outlet: 1” BSPF Vent: ¼” BSPF with Plug Drain: ¼” BSPF with Plug
