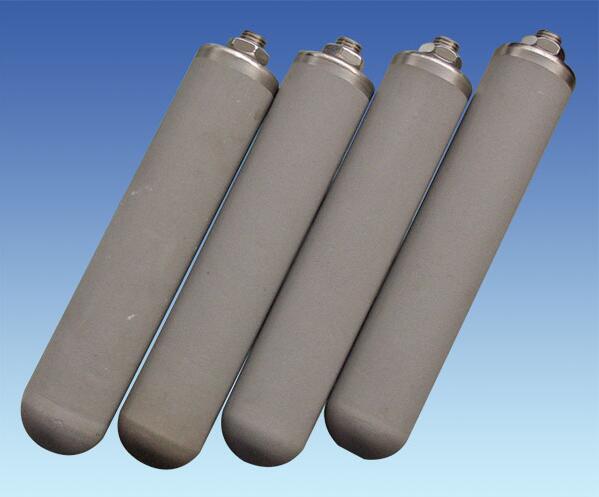

Sintered titanium filter cartridge also be called sintered titanium filter element. With excellent mechanical properties, high and low temperature resistance and chemical stability, it is widely used in liquid decarbonization and gas filter. Besides the standard size of length 50mm, 60mm, 70mm, Dia of 5”, 10”,20”, 30”, 40”, we welcome your customized order.
Description
Performance：
1.Well-distributed structure, narrow bore diameter, high separation efficiency.
2.High porosity, low filtration resistance, efficient penetration, which can up to 95％～99.9％.
3.High temperature resistance, can work regularly in the 280℃。
4.Good chemical stability, acid resistance, alkali resistance, antioxidant.
5.Non particle shedding, meets food grade and GMP.
6.Good mechanical properties, simple operation.
7.Low differential pressure, small footprint.
8. Good Anti-microbial ability, doesn’t react with microbes.
9. Good molding process, the overall no welding length can up to 1000 mm.
10. Easy-washing, long service life.
Techincal parameters( Allow ≤250°C the conditions of using)
| Filtering level | Filtering precision(μm） | Maximum Aperture (μm) | Permeability (m3/h.m2.kpa) | Thickness(mm) | Compressive strength (Mpa/cm2) |
| T9 | 0.2 | 2.5 | 1.5 | 0.5-5 | 3 |
| T8 | 0.5 | 4 | 3 | 3 | |
| T7 | 1 | 6 | 5 | 3 | |
| T6 | 2 | 10 | 15 | 3 | |
| T5 | 5 | 15 | 40 | 2.5 | |
| T4 | 10 | 30 | 120 | 2.5 | |
| T3 | 20 | 60 | 250 | 2.5 | |
| T2 | 30 | 100 | 500 | 2.5 | |
| T1 | 50 | 160 | 800 | 2.5 |
Advantages:
1.Resistance to repated washing, long service life.
2.Very good chemical stability.
3.Excellent high voltage.
4.High temperature resistance, corrision resistance.
5.High mechanical strength, not easy to damage.

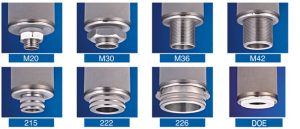

Connector type:
Working environment:
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, gas, carbon dioxide gas environment .
Application:
♦Pharmaceutical Industry
♦Chemical industry
♦Electronic Industry
♦Water Treatment Industry
♦Sewage Treatment
♦Food Industry
♦Oil refining industry
