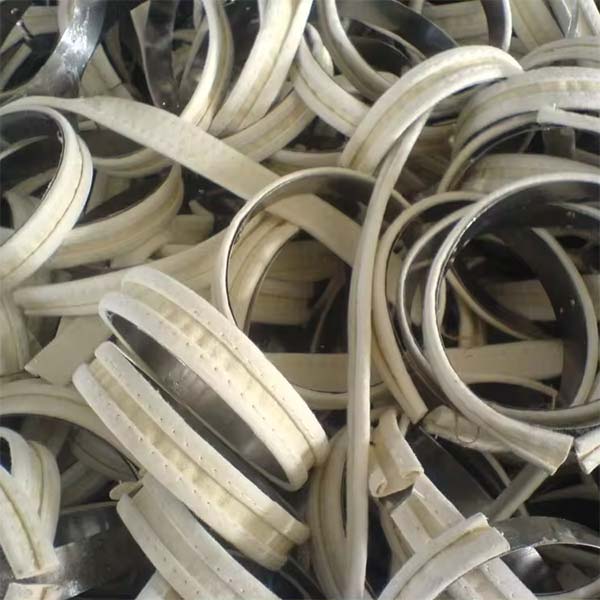

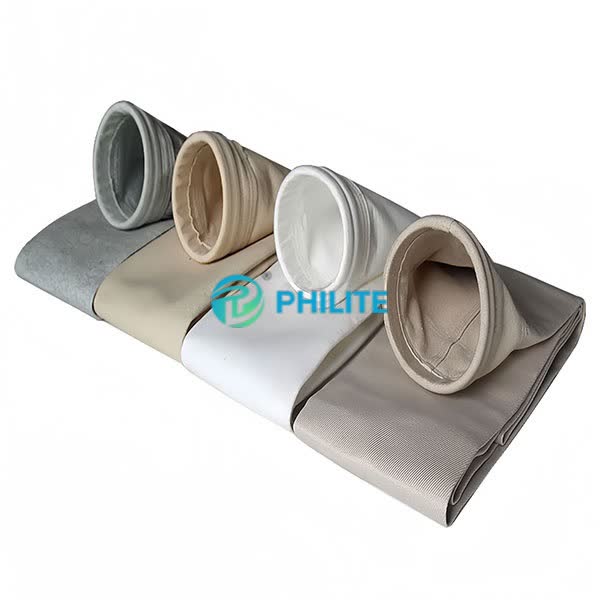

Snap Band Filter Bags

The snap band is a device used to secure and seal filter bags and is commonly used in equipment such as filters, vacuum cleaners and air purifiers. Its main functions include the following:

• Fixing the filter bag: The snap band fixes the filter bag to the filter element base or filter bag slot of the equipment to prevent the filter bag from loosening or falling off during operation of the equipment. This ensures that the filter bags work in the correct position and cannot be pulled away by air flow or suction forces. Sealing performance: Dust filter bag snap bands are usually designed to provide good sealing performance. They ensure a tight fit at the connection points between the filter bag and the equipment, preventing air or dust from bypassing the filter bag and entering the interior of the equipment. This sealing performance is very important for the filtration effect of the equipment.
• Prevent air leaks: In equipment such as vacuum cleaners and air purifiers, if the filter bags are not properly secured, air leaks may occur, which is when air, dust or dirt bypasses the filter bags and enters the interior of the equipment or returns to the indoor air. The purpose of the dust filter bag snap band is to ensure that the air inside the device flows through the filter bag, not around it.
• Extended filter bag service life: By properly fixing the filter bag, the filter bag is prevented from being damaged or worn due to vibration or airflow impact while the equipment is running. This can extend the service life of the filter bag, reduce the frequency of replacement, and reduce maintenance costs.



Snap Band Specifications

• Optional materials: carbon steel snap band, stainless steel snap band.
• Diameter: can be customized.
• Width: can be customized.
• Thickness: can be customized.



Filte Bag Materials

Material	Working Temperature	Instant Temperature	Abrasion Resistance	Hydrolysis Resistance	Acid Resistance	Alkali Resistance	Oxidation Resistance
Polyprolene Needle Felt	90℃	110℃	Good	Excellent	Excellent	Excellent	Middle
Acrylic Needle Felt	120℃	130℃	Middle	Good	Good	Middle	Good
Polyester Needle Felt	130℃	150℃	Excellent	Poor	Middle	Fair	Good
PPS Needle Felt	180℃	200℃	Good	Excellent	Excellent	Excellent	Fair
Aramid Needle Felt	204℃	220℃	Good	Middle	Middle	Good	Middle
P84 Needle Felt	240℃	260℃	Good	Middle	Middle	Middle	Good
PTFE Needle felt	250℃	280℃	Good	Excellent	Excellent	Excellent	Excellent
Fiberglass Needle Felt	250℃	280℃	Fair	Good	Middle	Fair	Good
Woven Fiberglass Filter Cloth	260℃	280℃	Good	Good	Good	Good	Good

Applications
