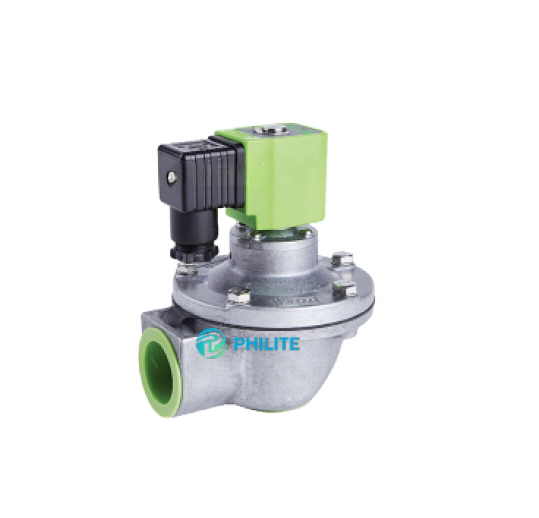

DMF-T electromagnetic pulse valves are straight-through valves.The inclined angle between its air inlet and outlet is 180°(the center line of the air inlet and that of the air outlet are on the same straight line). They are suitable for connecting the air inlets with the air cylinders, or the air outlets with the blow tubes. With a smooth air flow, they can provide an efficient, dust-cleaning air pulse.
Description

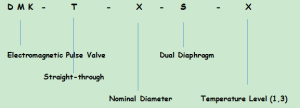

Type Definition
Specification
| Type | DMF-T-20 | DMF-T-25S | DMF-T-40S |
| Diaphragm Diameter (mm) | Ø96 | Ø112 | Ø127 |
| Flow Coefficient(Kv/Cv) | 15.78/18.42 | 18.55/21.65 | 45.62/53.24 |
| Blowing Area (m2) | 3.5-6 | 8-10 | 12-16 |
| Air Inlet/Outlet Size | G3/4’’G3/4’’ | G1’’G1’’ | G1½’’G1½’’ |
| Weight (kg) | 0.8 | 1.4 | 1.8 |
| Type | DMF-T-50S | DMF-T-62S |
| Diaphragm Diameter (mm) | Ø160 | Ø202 |
| Flow Coefficient(Kv/Cv) | 50.77/59.25 | 111.67/130.32 |
| Blowing Area (m2) | 18-28 | 27-38 |
| Air Inlet/Outlet Size | G2’’G2’’ | G2½’’G2½’’ |
| Weight (kg) | 2.8 | 4.1 |
