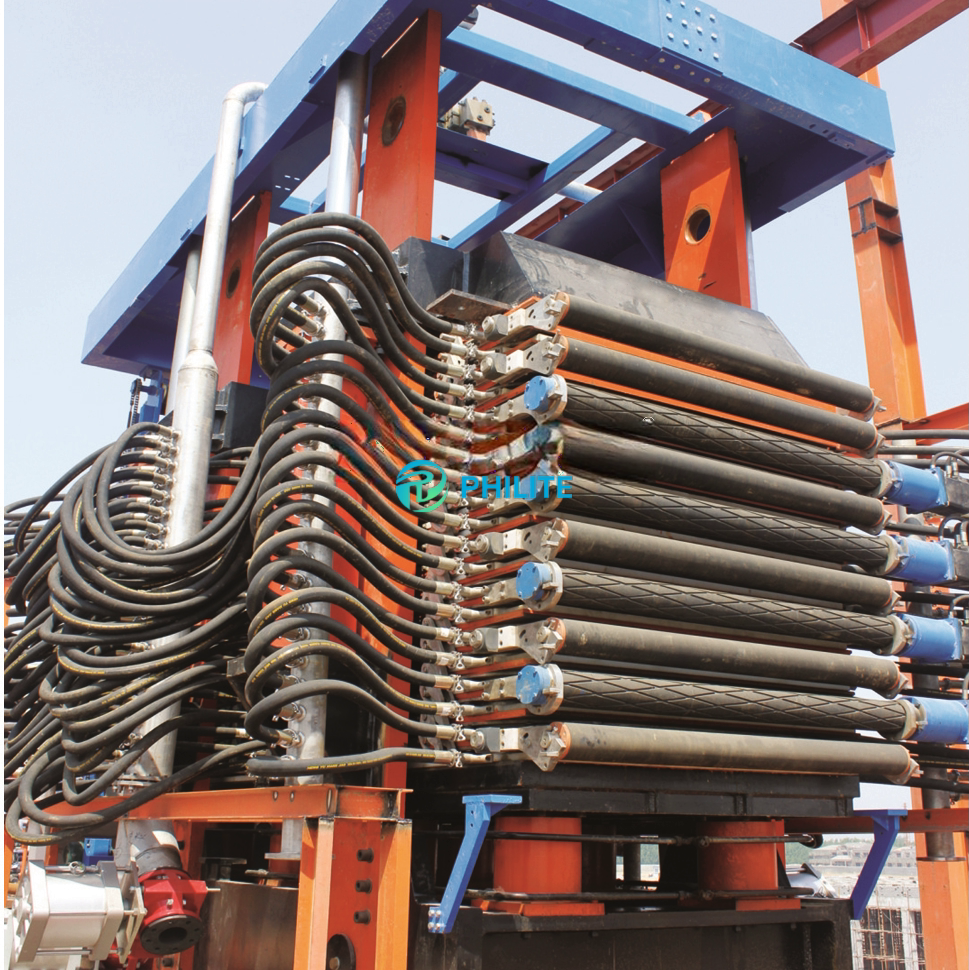

Tower Filter produces extremely dry solids, thus eliminating or dramatically reducing the need for thermal drying.
Capacity: 1200pcs/day
Material: PP, PE
Weaving Methods: Plain, Twill, Satin
Cloth Codes Most Widely Used: ES-LPP
Description
Vertical pressure filter cloths need excellent resistance against the extension, creasing, and mechanical stress.
Tower Filter Cloth Widely Used Size:
1.05m width X 24cm-150cm length
1.7m width X 35cm-165cm length
Application:
Mining Industry: flotation concentrates, fine iron ore concentrates, leach residues, metallurgical precipitates and scrubber slurries.
Technical Parameters for Several Common Use Cloth
| Product Code | Material | Yarn Type | Weight (g/m²) | Thickness (mm) | Air Permeability
(L/m²/S @200pa) |
| ES-LPP10 | PP | Multi/Multi | 1140 | 1.75 | 10 |
| ES-LPP | PP | Multi/Multi | 1140 | 1.8 | 45 |
| ES-LPPM | PP | Multi/Multi | 1000 | 2.0 | 80 |
| ES-LPE | PE | Multi/Multi | 1400 | 1.5 | 32 |
| ES-LPEO | PE | Multi/Mono | 1350 | 1.6 | 240 |
In order to give you a responsible quotation, Please inform us of the following information:
Application.
Model of Tower Filter
Filtrate PH value
Filtrate properties like viscosity
Working temperature
Solid particle properties like size, shape, uniformity, hardness
Precise dimension, length includes the SS clipper and the width
