Venturi

The Venturi effect is the reduction in fluid or air pressure that results when a fluid or air flows through a constricted section of filter bag.
Our venturi’s materials can be Aluminum, Conjoined, Conventional, Louvered and Stainless Steel.

Category Filter Bag Accessories Tag Dust Filtration

Get a Quote

Description

We have 5 materials of Venturi can be chosen and differents types

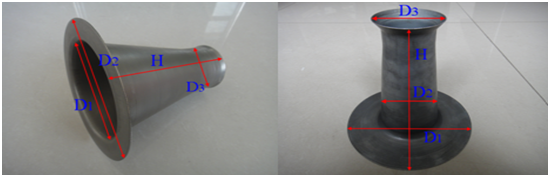

1.Stainless steel venturi

Bag cage venturi can achieve the delivery of powder airflow, mainly using its fire-suction effect . Efficient and filter iron venturi generally used for dust skeleton, the cartridge , which generally use 1.2 mm thick steel plate forming a stretch production.It is characterized by smooth and beautiful appearance , stable and reliable quality , effectively improve the service life of the bag.

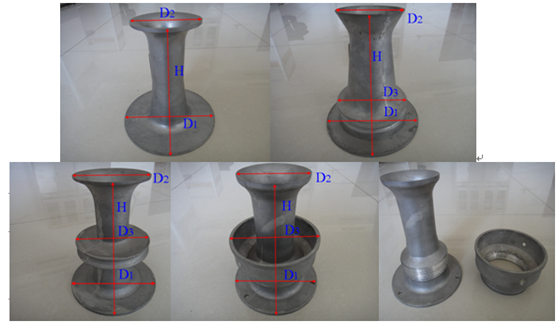

Types	D1（mm）	D2（mm）	D3（mm）	H（mm）	T（mm）	Materials
Ø105	Ø105	Ø165	Ø60	155	1.4	Stainless steel
Ø105	Ø105	Ø145	Ø60	155	1.4	Stainless steel
Ø95	Ø95	Ø190	Ø75	180	1.4	Stainless steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

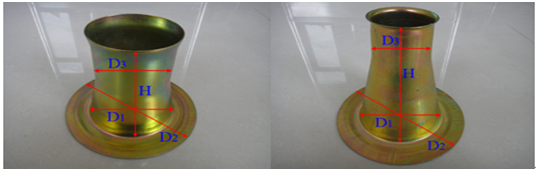

2.conventional venturi

Types	D1(mm)	D2(mm)	D3(mm)	H(mm)	T(mm)
Ø180XØ100	Ø180	Ø100		190	4.5
Ø180XØ90	Ø180	Ø90		160	4
Ø155XØ95	Ø155	Ø95		190	4
Ø150XØ90	Ø150	Ø90		160	4
Ø153XØ87	Ø153	Ø87	Ø130	190	4
Ø150XØ80	Ø150	Ø80	Ø110	165	4
Ø150XØ95	Ø150	Ø95	Ø110	190	4

4.Conjoined venturi

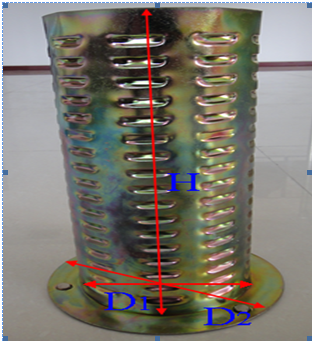

5.Louvered venturi

ypes	D1（mm）	D2（mm）	H（mm）	T（mm）	Materials
Ø175XØ125	Ø125	Ø175	300	1.2	Galvanized sheet, Carbon steel
Ø175XØ130	Ø130	Ø175	200	1.2	Galvanized sheet, Carbon steel
