Description
Features

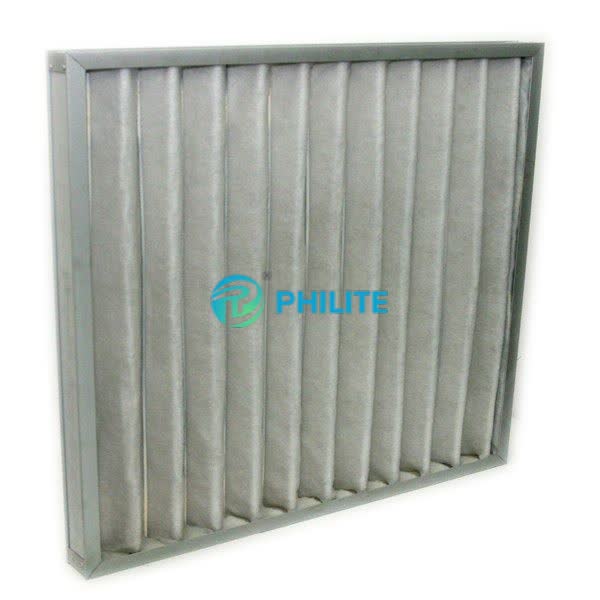

| Type | pleated panel filter |
| Frame | aluminium |
| Filter media | synthetic fiber |
| Grids | white epoxy painted steel bar |
| EN 779 Class | G3-F5 |
| Average arrestance | 80%－95%（ASHRAE 52.1-1992） |
| MERV | MERV 5－10（ASHRAE 52.2-1999） |
| DIN 53438 Flammability | F1 |
| UL 900 Standard | CLASS 2 |
| Final pressure drop | (recommender) 200Pa -（maximum）250Pa |
| Max. air flow rate | 125% of nominal air flow rate |
| Max. operating temperature | 100℃ |
| Max. relative humidity | 100% |
| Applications | coarse particle filtration |
Notice:Recycling.Washable for 2-3 times and can be reused
Specification
|
Type |
Class |
Dust efficiency |
Dimensions |
Filtering surface (m2) |
Rated air flow (m3/h) |
Initial pressure drop (Pa) |
||
|
Length (mm) |
Height (mm) |
Depth (mm) |
||||||
|
ZB-55 |
F5 |
95% |
592 |
592 |
45 |
0.75 |
2500 |
90 |
|
ZB-55 |
F5 |
95% |
630 |
630 |
70 |
1.15 |
3000 |
90 |
