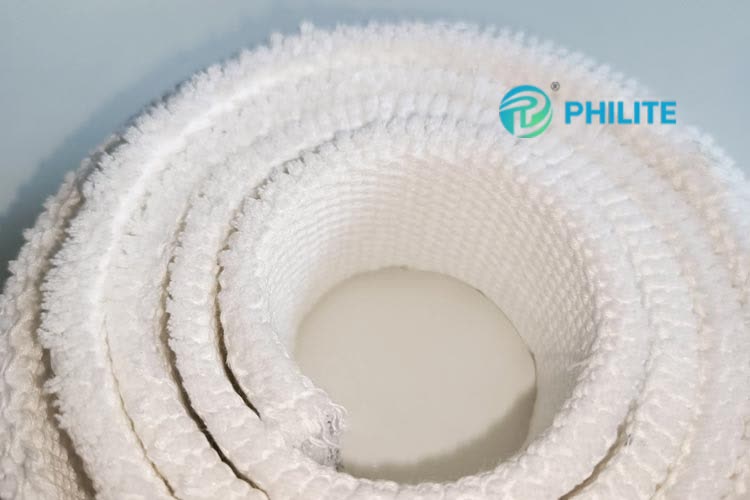

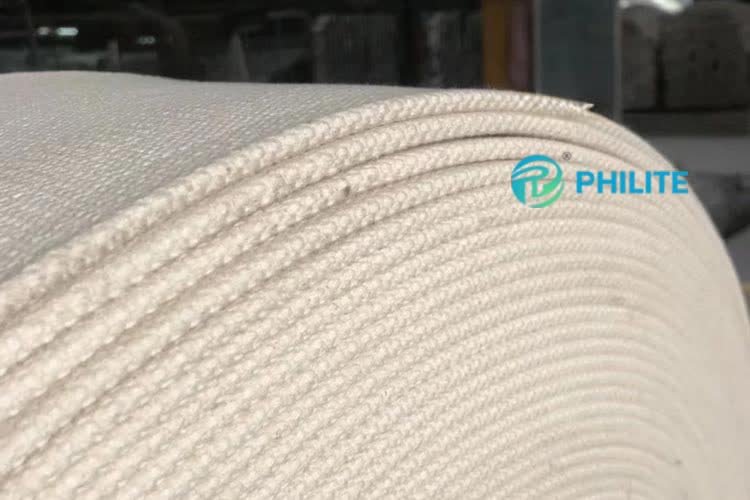

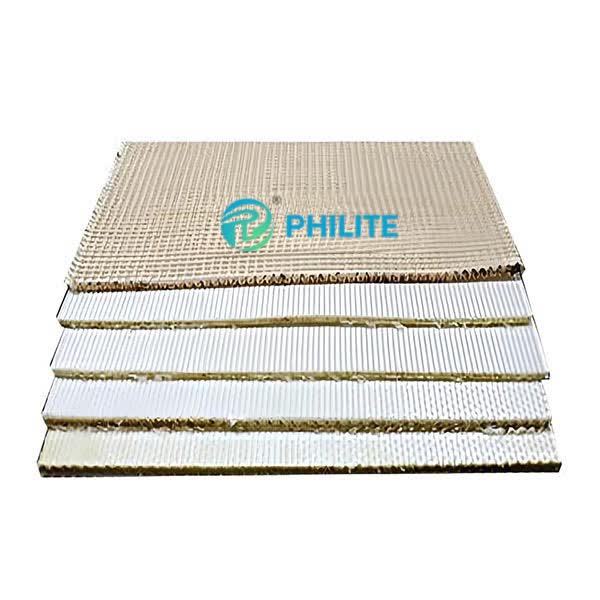

Airslide canvas also named air slide fabric, It also can be called air permeable fabric, air slide cloth, air slide membrane, air slide canvas, canvas cloth, and fluidizing fabric, etc.
- Our capacity: 500 ㎡/ month.
- Thickness: 4mm-10mm and other customized thickness.
- Width: can be customized.
- Heat resistance: 160 ℃ ~ 200 ℃.
- We also accept customization.
Description
Airslide canvas are the ideal fluidizing fabric for work processes at high temperature,which mainly used for pneumatic transmission of cement, bauxite, carbon black, gypsum, flour, etc. Philite® supply airslide canvas of first grade quality and competitive price using the most advanced technology. Our products has great performances of tensile strength, air permeability, service life, and heat-resistance. They are available in four varieties with thicknesses ranging from 4mm to 10mm, with custom widths available to suit your requirements.
Specification of Airslide Canvas (Air Slide Fabric)
| Air filter media | Picture | Features | Applications |

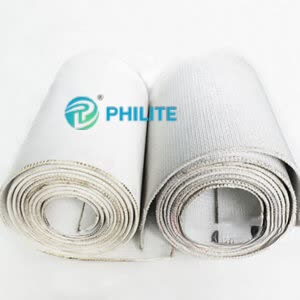

| Spun polyester air slide fabric |  | High reststance to wear& degradation high abrasion resistance | Cement industry Mining: alumina, lime, fly ash, phosphate |

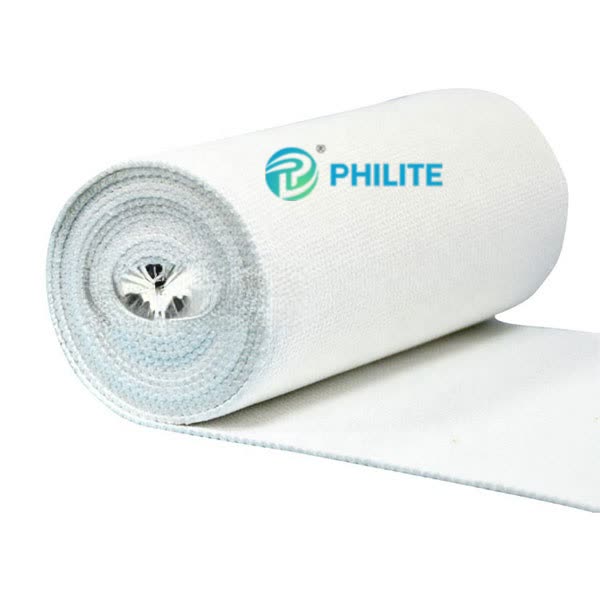

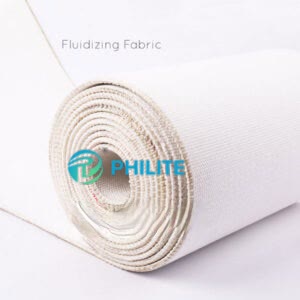

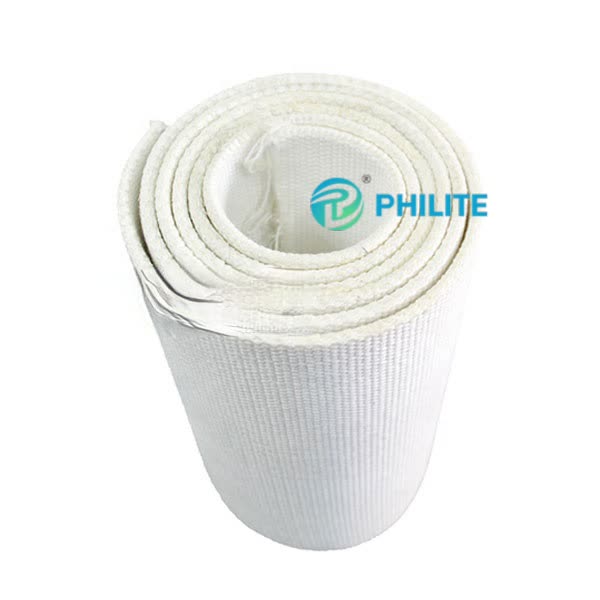

| Filament polyester air slide fabric |  | Constant air permeability high abrasion performance | Cement industry Food industry: flour Mining: alumina, lime, fly ash, phosphate |

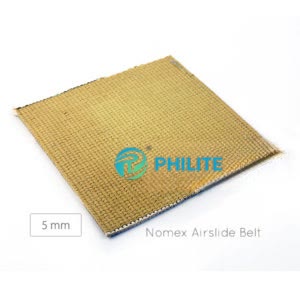

| Kevlar/Aramid(Nomex) air slide fabric |  | High temperature resistance, good sstability | Mining: alumina, lime, fly ash, phosphate |
| Basalt air slide fabric |  | Heat resistance, corrosion resistance, high tensile strength | Thermal power plant, alumina, bauxite, soda ash |
Technical parameters of spun polyester airslide canvas:
| Product Name | Spun polyester air slide | |
| Thickness (mm) | 6+0.3 | |
| Weight (gsm) | 4000土5% | |
| Air permeabilitl( L/m².s) | 70 | |
| Elongation (Strength: 2000 N/2 cm) | Warp | 2.1% |
| Weft | 1. .0% | |
| Working temperature | 160 C(320 ℉) | |
| Number of plies | 5 | |
Technical parameters of filament polyester airslide canvas:
| Product name | Filament polyester air slide | |
| Thickness (mm) | 6+0.3 | |
| Weight (gsm) | 4400土5% | |
| Air permeabilit( L/m².s) | 80 | |
| Elongation (Strength: 2000 N/2 cm) | Warp | 1. 9% |
| Weft | 0.9% | |
| Working temperature | 160 C(320 ℉) | |
| Number of plies | 5 | |
Technical parameters of kevlar/aramid(nomex) airslide canvas:
| Product Name | Kevlar/aramid(nomex) air slide fabric | |
| Thickness (mm) | 5 | 6 |
| Gram Weight (gsm) | 3600 | 4200 |
| Air permeability (L/m².s) | 50 | 35 |
| Tensile strengthkg/cm²) | > 550 | > 600 |
| Max. Operating Temp. | 260°C | 260°C |
| Ultimate Temp. (Instant) | 280 °C | 280°C |
| Number of plies | 5 | 5 |
Technical parameters of basalt airslide canvas：
| Product Name | Basalt Air Slide Fabric |
| Thickness (mm) | 5 |
| Gram Weight (gsm) | 8000 |
| Air permeability (L/m2.s) | 50 |
| Tensile strength(kg/cm?) | > 600 |
| Max. Operating Temp. | 780 C |
| Ultimate Temp. (Instant) | 800 C |
Benefits of Airslide Canvas in Philite®

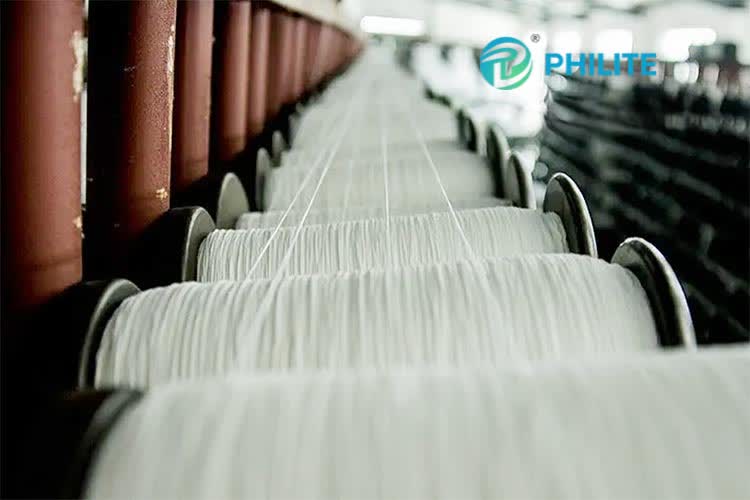

• Uniform high quality raw synthetic materials used in weaving process.
• Full synthetic smooth fibers- 100% Polyester multi-filament fabric.
• Smooth weave and even pores.
• High tension weaving.
• Robust & stable weave.
• High weight per M² Air slide fabric is made of polyester filament or polyester spun filament, they are mainly used in air transport flume of cement, alumina, etc, as well as used in other conveying appliance for some other dry particles, such as Bulk haulers, Barges, etc, which with a perfect fluid, will improve the convey efficiency, they can uniform the raw material if they are used in raw material Blending Bed Equipment.
Related products
-

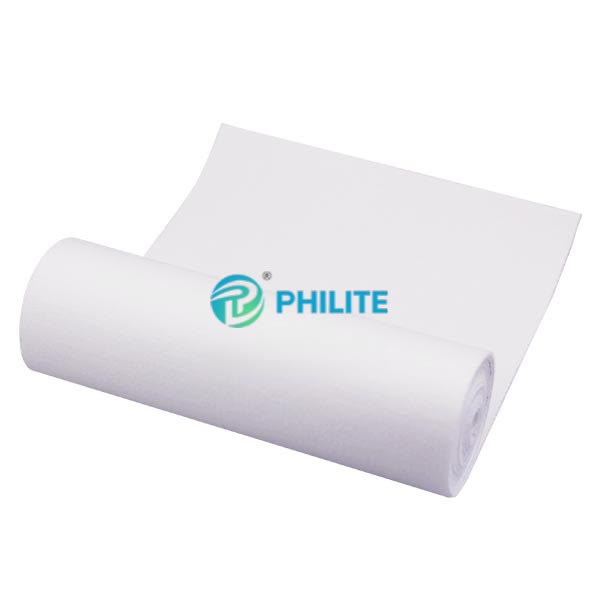

Needle Punched FeltPTFE Needle Felt Filter Cloth
-
