Description
Product Features
- The filter can be fitted with standard bags No. 1, No. 2, and No. 4.
- The filter is integrally molded without any threads or welding, ensuring the product’s sealing.
- The basket is formed integrally, with evenly distributed and orderly protruding solid square columns on the outside, increasing the compressive strength of the net basket.
- With a quick-opening top design, it can be easily opened without tools.
- The legs molded are strong and sturdy, making installation easier.
Specifications
| Model NO. | material | Bag size | Designed pressure(MPa) | Max flow (m3 / h) | Filter area(m2) | Inlet/outlet size(DN) | Working temperature(°C) |
| PF2-PH | PPH | 02 | 1.0 | 40 | 0.5 | 65 | 90 |
| PF2-DH | PVDF | 02 | 1.0 | 40 | 0.5 | 65 | 150 |
| PF1-PH | PPH | 01 | 1.0 | 20 | 0.25 | 50 | 90 |
| PF4-PH | PPH | 04 | 1.0 | 12 | 0.12 | 40 | 90 |
Typical Applications
- Food and beverage sterilization and filtration.
- High purity water terminal filtration.
- Fine chemical product filtration.
- Wine filling and filtration.
- Electronics industry.
- Petroleum, Automotive.
- Paper making.
- Pharmaceuticals.

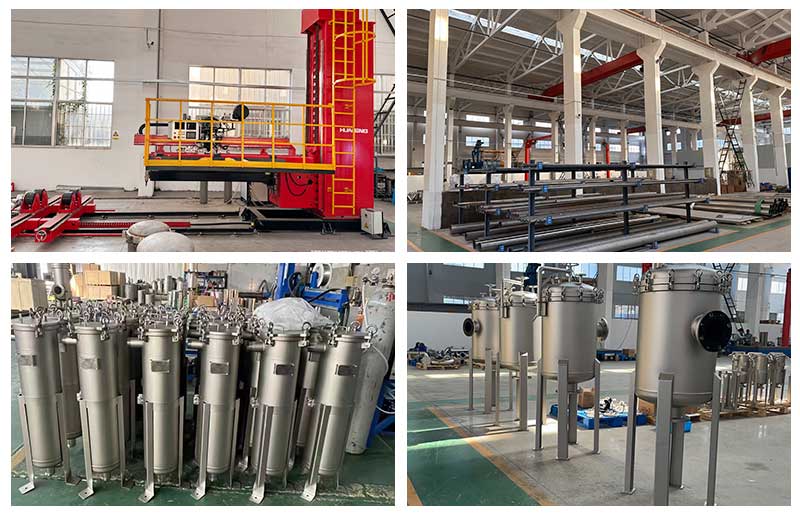

Our Factory
