- Suggested flow: 40m³/h.
- Filter bag size: 01:φ180*420; 02:φ180*810 .
- Maximum Temperature: 150℃.
- Maximum operating pressure: 1.0 MPa.
- Inlet and outlet: DIN/ANSI/BSP/NPT.
Description
Product Feature
- The curved head is inserted into the inlet, which reduces the pollution and facilitates cleaning.
- The top cover is a stainless steel precision casting formed as a whole;
- Sealing design to avoid leakage from side.
- There are only two welding seams on the filter cartridge, which is more solid and beautiful.
- The height of the legs can be adjusted.
- Filter materials include carbon steel ,304 stainless steel, 316 stainless steel, and other specific materials for selection.
- Design pressure from 6bar-21bar.
- Provide suitable sealing rings based on chemical compatibility and temperature range.

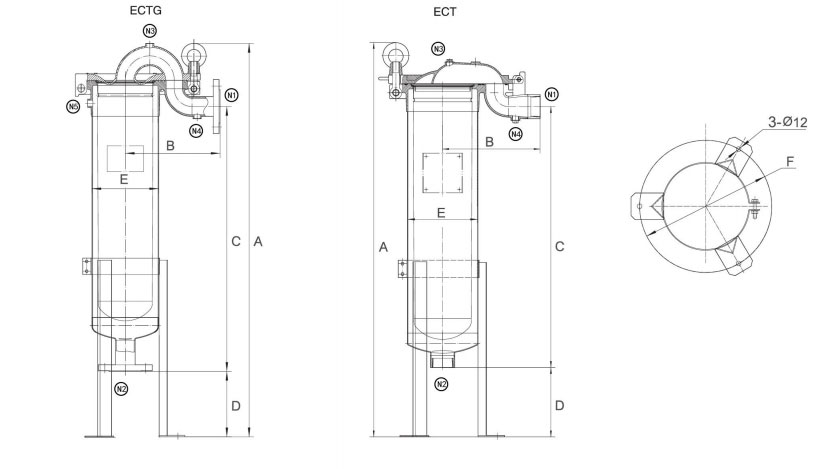

Specifications
| Product size | Bag size 02 | Bag size 01 |
| A | Flange 1201mm
Thread 1140mm |
Flange 847mm
Thread 787mm |
| B | 286mm
|
286mm
|
| C | Flange 816mm
Thread 756mm |
Flange 455mm
Thread 407mm |
| D | 200mm | 200mm |
| E | 200mm | 200mm |
| F | 326mm | 326mm |
| specification | Bag size 02 | Bag size 01 |
| Inlet/outlet(N1/N2) | Flange DN50 PN16(2″150#)/thread BSP2″ | |
| exhaust valve(N3) | Rc1/2″ | Rc1/2″ |
| sewage outlet(N4) | Rc1/2″ | Rc1/2″ |
| capacity | 28L | 17L |
| Neight weight | 33 kg | 29 kg |
Typical Applications
- Food and beverage sterilization and filtration.
- High purity water terminal filtration.
- Fine chemical product filtration.
- Wine filling and filtration.
- Electronics industry.
- Petroleum, Automotive.
- Paper making.
- Pharmaceuticals.
