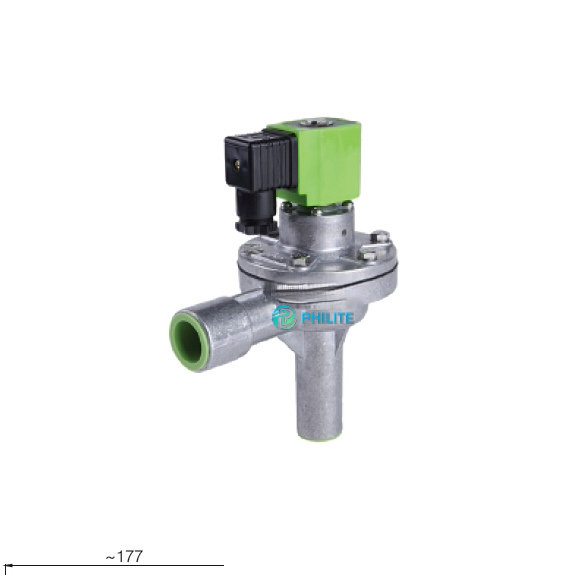

DMF-Z electromagnetic pulse valves are right-angle valves. The inclined angle between its air inlet and air outlet is 90°. They are suitable for connecting air tank with blowing tubes for bag filters. With a smooth air flow, they can provide efficient dust-cleaning air pulse.
Description

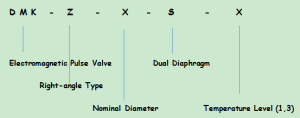

Type Definition
Specification
| Type | DMF-Z-20 | DMF-Z-25 | DMF-Z-40S | DMF-Z-50S |
| Diaphragm Diameter (mm) | Ø80 | Ø96 | Ø112 | Ø160 |
| Flow Coefficient(Kv/Cv) | 17.55/20.48 | 26.16/30.53 | 45.82/53.47 | 61.24/71.47 |
| Blowing Area (m2) | 3.5-6 | 8-10 | 12-16 | 18-28 |
| Air Inlet/Outlet Size | G3/4’’G3/4’’ | G1’’G1’’ | G1½’’G1½’’ | G2’’G2’’ |
| Weight (kg) | 0.65 | 0.8 | 1.4 | 2.4 |
| Type | DMF-Z-62S | DMF-Z-76S | DMF-Z-102S | DMF-2L-B |
| Diaphragm Diameter (mm) | Ø188 | Ø202 | Ø255 | Ø90 |
| Flow Coefficient(Kv/Cv) | 129.26/150.85 | 159.95/186.66 | 260/303 | 16.95/19.78 |
| Blowing Area (m2) | 27-38 | 37-65 | 70-90 | 3.5-6 |
| Air Inlet/Outlet Size | G2½’’G2½’’ | G3’’G3’’ | G4’’G4’’ | G3/4’’Ø27 |
| Weight (kg) | 3.5 | 4.3 | 7.3 | 0.75 |
Right-angle Electromagnetic Pulse Valves and Pulse Valves
| Type | DMF-ZF-25 | DMF-ZF-40S |
| Diaphragm Diameter (mm) | Ø96 | Ø112 |
| Flow Coefficient(Kv/Cv) | 26.16/30.5 | 45.82/53.47 |
| Blowing Area (m2) | 8-10 | 12-16 |
| Air Inlet/Outlet Size | Ø34Ø34 | Ø48Ø48 |
| Weight (kg) | 1 | 1.6 |
